Agricultural Telehandlers

MLT 630-105 V CP

MLT 630-105 V CP

MLT 630-105 V CP

Technical sheet :

MLT 630-105 V CP

MLT 630-105 V CP
Manitou - handling your world
Capacities Metric
Max. capacity Q 3000 kg
Max. lifting height h3 6 m
Max. outreach l4 3.43 m
Reach at max. height 0.9 m
Breakout force with bucket 5840 daN
Weight and dimensions
Unladen weight (with forks) 6760 kg
Ground clearance m4 0.28 m
Wheelbase y 2.69 m
Overall length to carriage (with hitch) l11 4.78 m
Front overhang 1.25 m
Overall width b1 2.06 m
Overall cab width b4 0.95 m
Overall height h17 2.14 m
Tilt-down angle a5 133 °
Tilt-up angle a4 13 °
External turning radius (over tyres) Wa1 3.65 m
Standard tyres Alliance - A580 - 400/70 R20 149A8
Drive wheels (front / rear) 2 / 2
Steering wheels (front / rear) 2 / 2
Performances
Lifting 6.5 s
Lowering 5 s
Extension 5.4 s
Retraction 3 s
Crowd 3.4 s
Dump 2.7 s
Engine
Engine brand Deutz
Engine norm Stage IV
Engine model TCD 3,6 l
Number of cylinders - Capacity of cylinders 4 - 3621 cm³
I.C. Engine power rating / Power (kW) 101 Hp / 74.4 kW
Max. torque / Engine rotation 410 Nm/m @1600 tr/min
Drawbar pull (Laden) 6540 daN
Reversible fan Standard
Engine cooling system 3 radiators water + intercooler + hydraulic oil
Transmission
Transmission type M-Varioshift
Number of gears (forward / reverse) 2 / 2
Max. travel speed (may vary according to applicable regulations) 38 km/h
Differential lock Limited slip differential on front axle
Parking brake Manual
Service brake Oil-Immersed multi-discs braking on front axles
Hydraulics
Hydraulic pump type Gear pump
Hydraulic flow - Pressure 104 l/min - 250 Bar
Flow sharing distributor Option
Tank capacities
Hydraulic oil 94 l
Fuel tank 78 l
Diesel Exhaust fluid (AdBlue® type) 13 l
Noise and vibration
Noise at driving position (LpA) tested following NF EN 12053 norm 74 dB(A)
Environmental noise (LwA) 105 dB(A)
Vibration to whole hand/arm < 2.50 m/s²
Miscellaneous
Safety tractor homologation / cab homologation Safety tractor homologation - Cab ROPS - FOPS Level 2
Controls JSM

Options / Finishing

S : Standard / O : Optional / - : Not available

Classic Premium Elite
Lifting function
Easy Connect System (E.C.S.) S S S
Hydraulic attachment locking O O O
Return pipe to hydraulic oil tank O O O
Electrovalve for 2 hydraulic functions (on boom head) O O O
Boom suspension - S/O** O
Operator station
Automatic wheel alignment O O S
"Active CRC" boom suspension O O S
Tuner car radio (50 W) S - -
Bluetooth USB car radio with integrated microphone (100 W) O S -
Bluetooth USB car radio with extra microphone (100 W) O O S
"Harmony" screen S S -
Air conditioning with manual adjustment O S/O** -
Air conditioning with automatic adjustment O - S
Extra front wiper O S S
Electric mirror with de-icing O O S
Low frequency pneumatic cloth seat with heating (KAB) - - S
Air suspension cloth-covered seat O S -
Low frequency pneumatic cloth seat O - -
Mechanical cloth-covered seat S - -
low frequency air suspension cloth-covered seat - O -
vision screen (7") O O S
Motorization/Power
Continuous flow hydraulics O O S
Hand throttle O O S
Lighting
Front and rear work lights on cab (x4: 2 front + 2 rear) S - -
Front and rear LED work lights on cab (x4 : 2 front + 2 rear) O S S
LED + (4 additional work lights) O O O
flat grid on the roof O O O
Secondary functions
Additional fuel tank (25 l) - S S
Ladder hitch with choice of hooks O O O
Hydraulic trailer brake S S/O** S
Manual rotating towing hitch S S S
automatic rotating towing hitch O O O
hydraulic pick-up hitch O O O

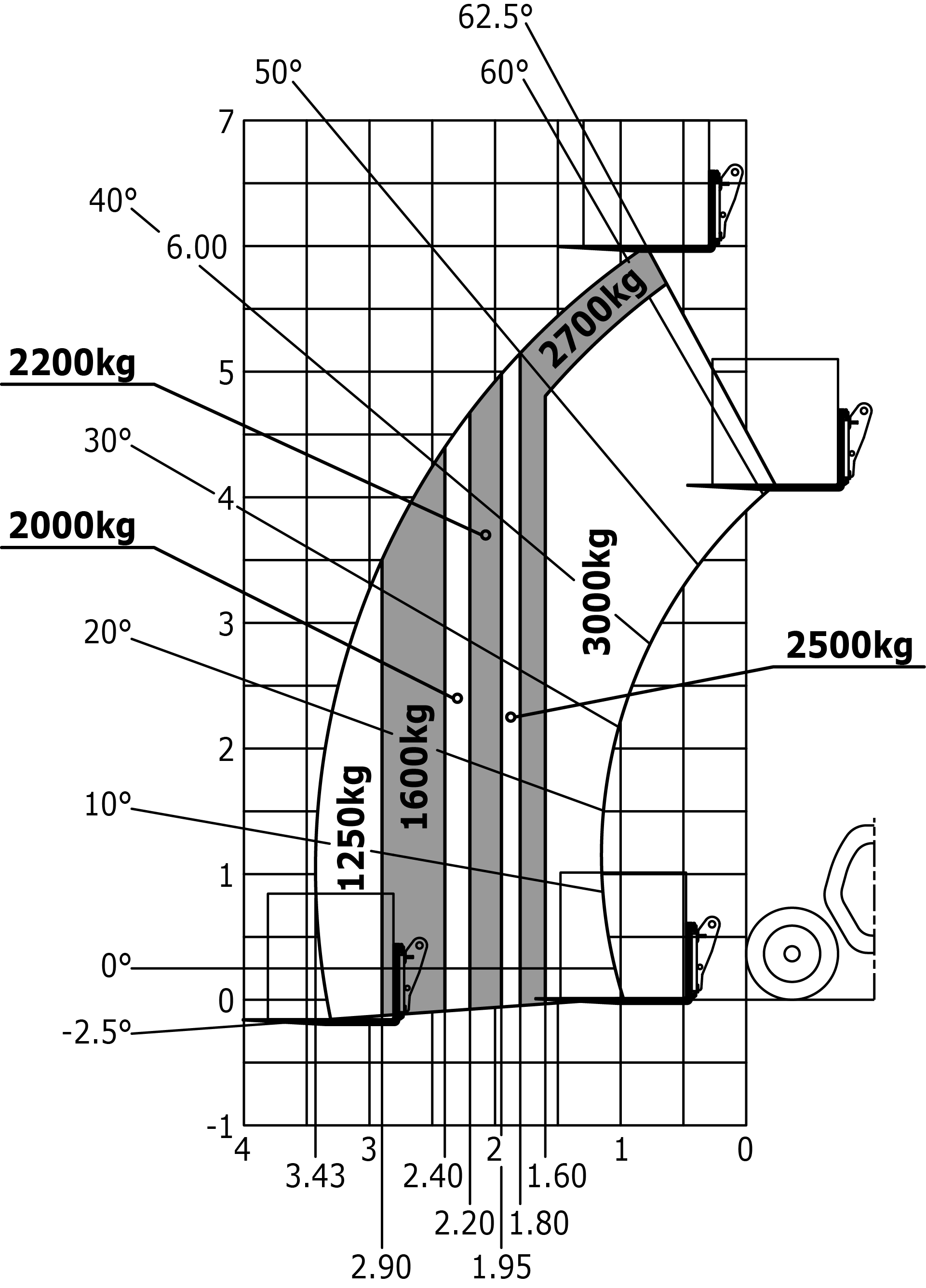

Load chart

Rough terrain load chart (EN 1459 B) Metric MLT 630-105 V CP

Dimensional drawing

MLT 630-105 V CP MLT 630-105 V CP MLT 630-105 V CP
MLT 630-105 V CP
